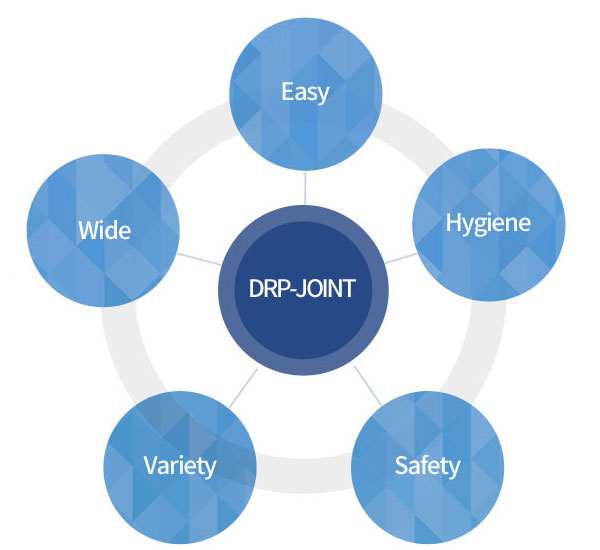

Characteristics
Easy Pressing Process
Pressing process is easy by minimizing press point
Hygienic Product
It is the same stainless steel using in medical field
Customer Convenience
Customizing is available for customer’s convenience
· Produced up to 100A, it is applicable in wide ranges of construction fields
· Skilled worker is not necessary.
· Installation time reduction (takes only 20 seconds for 20A)

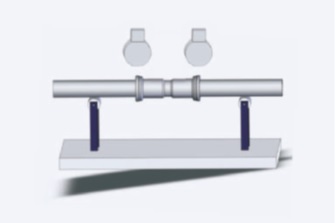

Bending Test
Pressure

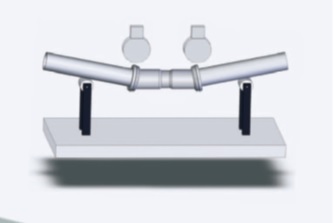

After bending
DRP-JOINT passed the test for approval of tensile force of 15A 80Mpa, 100A 600Mpa under the condition of fluid pressure 2.5Mpa which are designed specification. Test result shows that there is no fluid leakage when being bent up to 22.28°. It means DRP-JOINT ensures safety against ground subsidence and earthquake.

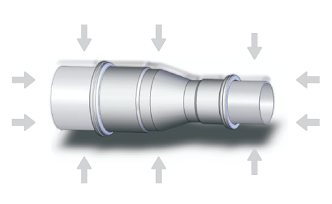

Vibration Test
Passed vibration test under 2 million times of frequencies
Passed shock-proof test under the conditions:
ㆍpressure of fluid: 2.5Mpa
ㆍAmplitude of vibration: 1.16mm
ㆍFrequency: 20Hz
ㆍDuration: 168hr (7days)
ㆍ#of total vibration: 500,000 times
(Test on SM-JOINT 15A)
