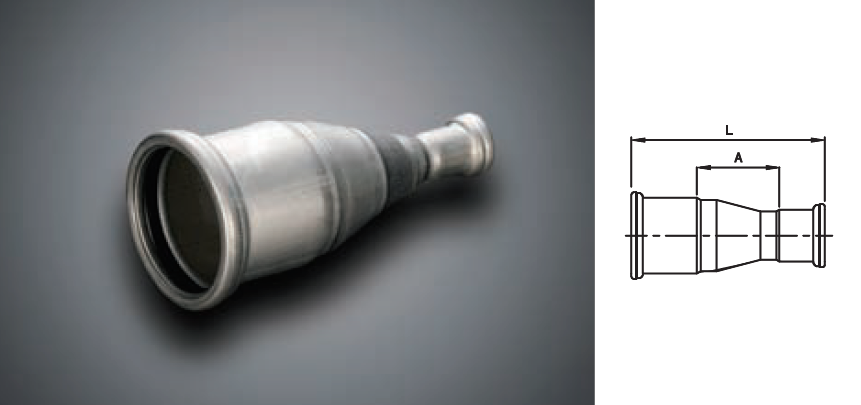

REDUCER
규격/기호 | A | L | 공차 |
20×13 | 20 | 68 | ± 3 |
25×13 | 37 | 86 | ± 3 |
25×20 | 19 | 70 | ± 3 |
30×13 | 43 | 101 | ± 3 |
30×20 | 36 | 97 | ± 3 |
30×25 | 27 | 88 | ± 3 |
40×13 | 52 | 113 | ± 3 |
40×20 | 45 | 108 | ± 3 |
40×25 | 47 | 109 | ± 3 |
40×30 | 32 | 104 | ± 3 |
50×13 | 64 | 131 | ± 3 |
50×20 | 57 | 127 | ± 3 |
50×25 | 54 | 124 | ± 3 |
50×30 | 51 | 131 | ± 3 |
50×40 | 28 | 116 | ± 3 |
60×13 | 95 | 168 | ± 5 |
60×20 | 76 | 152 | ± 5 |
60×25 | 70 | 146 | ± 5 |
60×30 | 69 | 154 | ± 5 |
60×40 | 52 | 141 | ± 5 |
60×50 | 36 | 133 | ± 5 |
75×30 | 113 | 175 | ± 5 |
75×40 | 113 | 222 | ± 5 |
75×50 | 113 | 230 | ± 5 |
75×60 | 114 | 190 | ± 5 |
80×40 | 113 | 195 | ± 5 |
80×50 | 113 | 237 | ± 5 |
80×60 | 114 | 244 | ± 5 |
80×75 | 106 | 220 | ± 5 |
100×50 | 126 | 219 | ± 5 |
100×60 | 127 | 258 | ± 5 |
100×75 | 135 | 274 | ± 5 |
100×80 | 135 | 250 | ± 5 |
