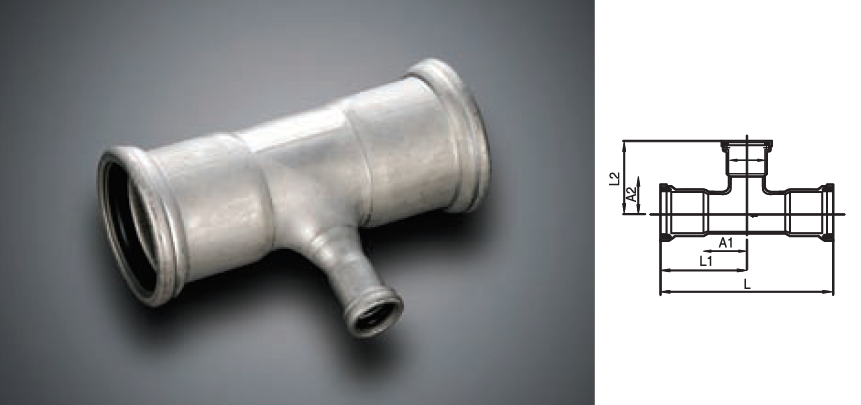

티

규격/기호	A1	A2	L	L1	L2	공차
13 × 13	17	20	80	40	42	±3
20 × 13	22	23	96	48	45	±3
20 × 20	22	23	96	48	48	±3
25 × 13	22	28	106	53	50	±3
25 × 20	27	28	106	53	53	±3
25 × 25	27	28	106	53	53	±3
30 × 13	30	40	132	66	61	±5
30 × 20	30	33	132	66	57	±5
30 × 25	30	33	132	66	57	±5
30 × 30	30	34	132	66	68	±5
40 × 13	36	46	146	73	68	±3
40 × 20	36	40	146	73	64	±3
40 × 25	36	40	146	73	64	±3
40 × 30	36	40	146	73	74	±3
40 × 40	36	40	146	73	76	±3
50 × 13	24	49	138	69	71	±3
50 × 20	24	42	138	69	67	±3
50 × 25	24	42	138	69	67	±3
50 × 30	35	43	156	78	77	±3
50 × 40	35	43	156	78	79	±3
50 × 50	33	43	156	78	87	±3
60 × 13	33	53	192	96	74	±5
60 × 20	33	45	192	96	71	±5
60 × 25	33	47	192	96	71	±5
60 × 30	33	49	192	96	81.5	±5
60 × 40	48	52	192	96	84.5	±5
60 × 50	48	50	192	96	91.5	±5
60 × 60	48	50	192	96	98	±5
75 × 25	41	50	270	135	74	±5
75 × 40	41	50	270	135	87	±5
75 × 50	60	50	270	135	95	±5
75 × 60	60	52	270	135	102	±5
75 × 75	61	59	278	139	130	±5
80 × 40	46	56	278	139	93	±5
80 × 50	66	56	278	139	101	±5
80 × 60	66	57	278	139	109	±5
80 × 75	66	65	288	144	140	±5
80 × 80	66	65	314	157	145	±5
100 × 40	60	69	314	157	140	±5
100 × 50	61	69	314	157	114	±5
100 × 60	61	70	314	157	121	±5
100 × 75	83	77	314	157	153	±5
100 × 80	83	77	314	157	158	±5
100 × 100	83	79	314	157	160	±5
